Casing Tongs provide make-up and break-out capabilities when running casing tubular in the drill hole to maintain well integrity. Casing tongs are available for various sizes from 5-1/2" to 36" and designed to handle high torque casing or lightweight casing. Available models: Standard, Hydra-Shift, High Torque, and Ultra High Torque with torques ranging from 15,000 ft-lbs up to 200,000 ft-lbs. Consistent operations between models reduce employee training.

Casing Tong Models

Top Drive

Top Drive Torque by Power Swivel

7.25 HS HT-80

2-3/8 - 7 1/4 in. 80,000 ft-lbs (108465.4 Nm)

7-5/8 Standard

2-3/8 - 7-5/8 in. 15,000 ft-lbs (20337 Nm)

7-5/8 HD-20

2-3/8 - 7-5/8 in. 20,000 ft-lbs (27116 Nm)

7-5/8 HDS-25

2-3/8 - 7-5/8 in. 25,000 ft-lbs (33895 Nm)

7-5/8 HDS-35

2-3/8 - 7-5/8 in. 35,000 ft-lbs (47454 Nm)

8-5/8 Hydra-Shift^® HT

2-3/8 - 8-5/8 in. 40,000 ft-lbs (54233 Nm)

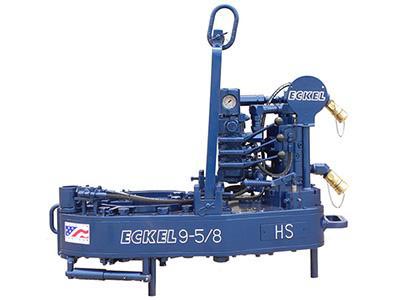

9-5/8 Hydra-Shift^® NB

2-3/8 - 9-5/8 in. 18,000 ft-lbs (24405 Nm)

9-5/8 Hydra-Shift^® HD

2-3/8 - 9-5/8 in. 25,000 ft-lbs (33895 Nm)

9-7/8 HS-40

3-1/2 - 9-7/8 in. 40,000 ft-lbs (54232.7 Nm)

9-7/8 HS-55

3-1/2 - 9-7/8 in. 55,000 ft-lbs (74569.99 Nm)

9-7/8 HS HT-75

3-1/2 - 9-7/8 in. 75,000 ft-lbs (101686.4 Nm)

10-3/4 Standard

2-3/8 - 9-5/8 in. 20,000 ft-lbs (26116 Nm)

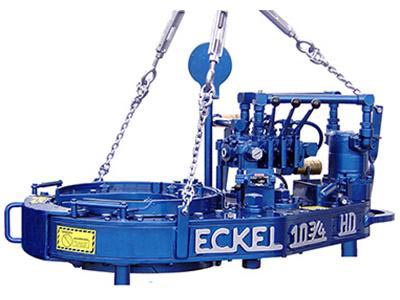

10-3/4 Heavy Duty

4 - 10-3/4 in. 25,000 ft-lbs (33895 Nm)

13-3/8 Standard

4 - 13-3/8 in. 25,000 ft-lbs (33895.5 Nm)

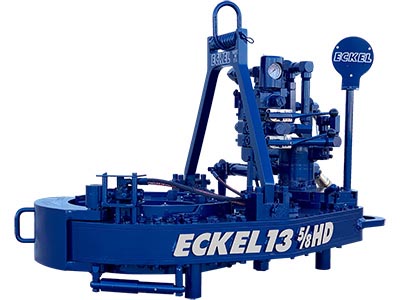

13-5/8 HD-30

5-1/2 - 13-5/8 in. 30,000 ft-lbs (40675 Nm)

13-5/8 HD-35

5-1/2 - 13-5/8 in. 35,000 ft-lbs (40675 Nm)

13-5/8 HD-45

5-1/2 - 13-5/8 in. 45,000 ft-lbs (61012 Nm)

14 Hydra-Shift

4 - 14 in. 35,000 ft-lbs (47454 Nm)

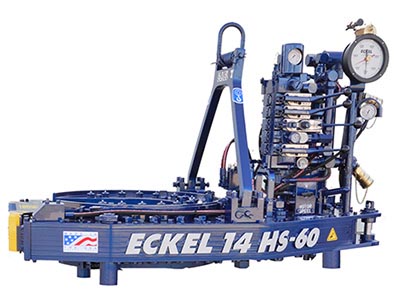

14 HS-60

4 - 14 in. 60,000 ft-lbs (81349 Nm)

14 UHT

4 - 14 in. 70,000 ft-lbs (94907.3 Nm)

14 HS HT Tri-Grip

4 - 14 in. 135,000 ft-lbs (183035 Nm)

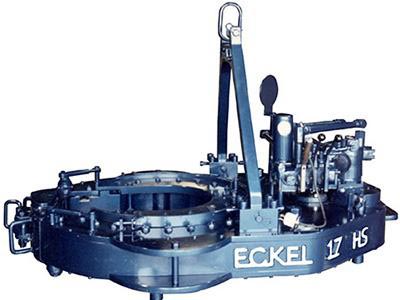

17 Hydra-Shift

5-1/2 - 17 in. 40,000 ft-lbs (54233 Nm)

20 Standard

7 - 20 in. 42,000 ft-lbs (56944 Nm)

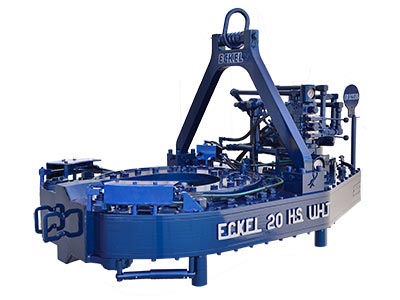

20 Hydra-Shift^® UHT

7 - 20 in. 120,000 ft-lbs (162698 Nm)

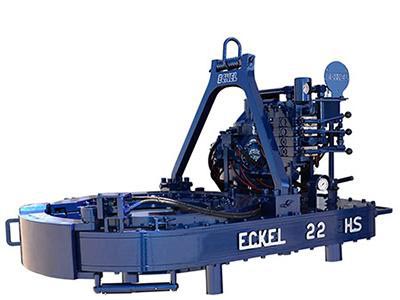

22 HS-80

7 - 22 in. 80,000 ft-lbs (108465 Nm)

24 UHT

13-3/8 - 24 in. 95,000 ft-lbs (128802.7 Nm)

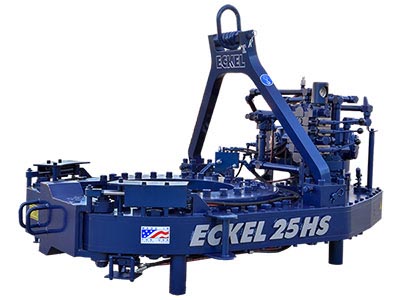

25 HS-60

7 - 25 in. 60,000 ft-lbs (81394 Nm)

25 HS-85

7 - 25 in. 85,000 ft-lbs (115244 Nm)

25 HS-125

7 - 25 in. 125,000 ft-lbs (169477 Nm)

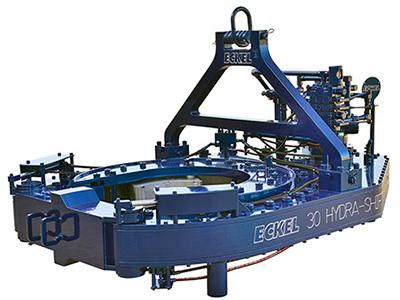

30 Hydra-Shift

14 - 30 in. 130,000 ft-lbs (2176256.3 Nm)

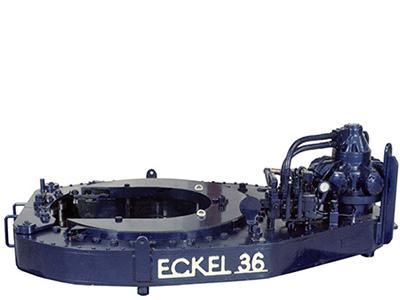

36 UHT

16 - 36 in. 100,000 ft-lbs (1355582 Nm)
