14 HS-60 with
Space Saver® Technology

Casing Tong: 4 - 14 in.

Exceptional performance, operational speed, and improved crew safety!
Views
Features
  • 60,000 ft-lbs (81349 Nm) Maximum Torque
  • Enhanced overall torque with patented CASE STIFFENERS
  • Hydra-Shift® Motor
  • Flexible Choice of Torque & RPM with Hydra-Shift Motor and Two Speed Gear Train, (4) Torque Levels / (4) RPM Speeds
  • Self Aligning Throat
  • Safety enhanced design with integrated door interlock located within tong body for added protection.
  • Touchless Space Saver® Door Technology
  • Patented Space Saver® Door - reduced operational footprint* for tong while providing touchless door operation that greatly enhances safety
  • Space Saver® Door technology and Case Stiffiner technology are covered by one more U.S. and/or foreign patents.
  • Drop-in Style Bracket/Mount Shaft Encoder
  • Wedge Drive Tri-Grip® Backup
  • Wrap-Around Dies or Rig Dies: Steel Fine Tooth / Coarse Tooth

  • * No increase in tong length with door open.
Features:
Hydra-Shift® - Click for more information Pivot Heads - Click for more information Tri-Grip®Backup - Click for more information Coarse Tooth Dies - Click for more information Fine Tooth Dies - Click for more information Torque Control System - Click for more information Radial Lock Door - Click for more information
Related Documents:

Related Links:

Share:
Product Description

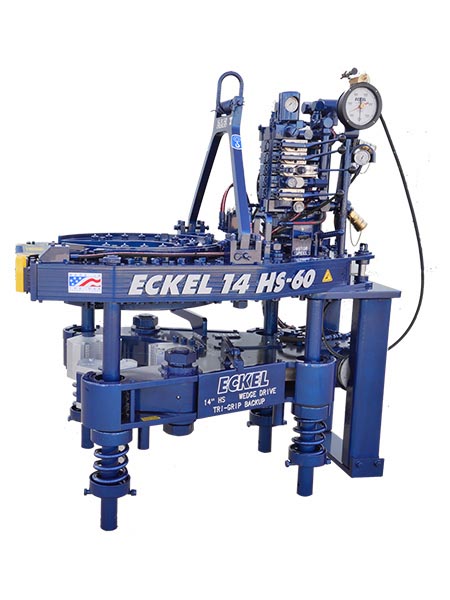

14 HS-60 Tong

New for 2020, the Eckel Model 14 HS-60 handles pipe from 4 inches to 14 inches while delivering 60,000 ft-lb of torque in low-speed, low-gear. The tong includes two highly popular technologies, Hydra-Shift® speed-shifting and a touchless Space Saver® door. Our patented CASE STIFFENER technology enhances overall torque to provide consistent torque output. Having a high full 360° rotational torque and speed-shifting capability ensures the tong can makeup special torque-turn connections that require continuous rotation. Also, the CASE STIFFENER technology reduces stress and wear on the rotary gear teeth. A two-speed Hydra-Shift motor is coupled with a two-speed gear train to provide (4) torque levels and (4) RPM speeds, allowing unprecedented control of the connection while providing a very smooth and high integrity connection. Available with Eckel's ever-popular touchless Space Saver door technology that hydraulically opens vertically to improve crew safety significantly, speed of operation, and tong performance.

Fully Enclosed Safety Door Interlock - Enhanced Safety

The safety door interlock prevents tong operation when the tong door is open. Now enclosed within the tong body, providing tamper-resistant concealment from operator circumvention. Accidental damage of the door interlock by hydraulic fluids, tubular connection, or other external forces is also greatly minimized. A front panel provides access to the door inter-lock for any maintenance required

Wedge Drive Tri-Grip® Backup

The WD Tri-Grip® Backup is a high performance no compromise backup that is suitable for make-up and break-out of the most resilient connections. The WD Tri-Grip® Backup features a three head design that encompasses the tubular that applies an evenly distributed gripping force. The backup is capable of handling tubulars from 3½ in. to 11 in. (88.9 - 279.4 mm). A constant radial load is applied with a single wedge drive to actuate the front two pivot heads with a third stationary head providing a reactionary force to provide a superior gripping performance. Wedge Drive Tri-Grip®Backup has exceptional gripping capabilities with Eckel Wrap-Around, True-Grit® dies or Pyramid Fine Tooth dies for making up other types of tubulars.

Technical Specifications
Tong Specifications
Capacity4 - 14 in. (101.6 - 355.6 mm)
Dimensions39.5 x 63.5 in. (1003.3 x 1612.9 mm)
Weight[1]2,750 lbs. (1247.4 kg)*
Maximum Torque @ 2,500 psi (172 bar)
High-High4,750 ft-lbs (6440 Nm)
High-Low9,500 ft-lb (12880 Nm)
Low-High30,000 ft-lb (40675 Nm)
Low-Low60,000 ft-lb (81349 Nm)
Maximum RPM @ 65 GPM (246 LPM)
High-High75 rpm
High-Low38 rpm
Low-High11 rpm
Low-Low5.5 rpm
Handle Length40.5 in. (1028.7 mm)
Backup Specifications
Backup TypeWedge Drive Tri-Grip®Backup
Capacity4 - 15.5 in. (101.6 - 393.7 mm)
Dimensions[2]44.5 x 68 in. (1130.3 x 1727.2 mm)
Weight[1][2]4,800 lbs. (2177.2 kg)
Load Cell Type Compression or Tension
Handle Length[2]40.5 in. (1028.7 mm)

[1]Weight Approximate, [2]Tong and Backup
