10¾ Heavy Duty

Casing Tong: 1.050 - 10¾ in.

Heavy duty torque design for demanding applications!
Views
Features
  • 25,000 ft-lbs (33895 Nm) Maximum Torque
  • Two Speed Gear Train
  • Quick Changing Sliding Heads
  • Self Aligning Throat
  • Radial Lock Door
  • Optional: Tri-Grip® Backup
Features:
Related Documents:

Related Links:

Share:
Product Description

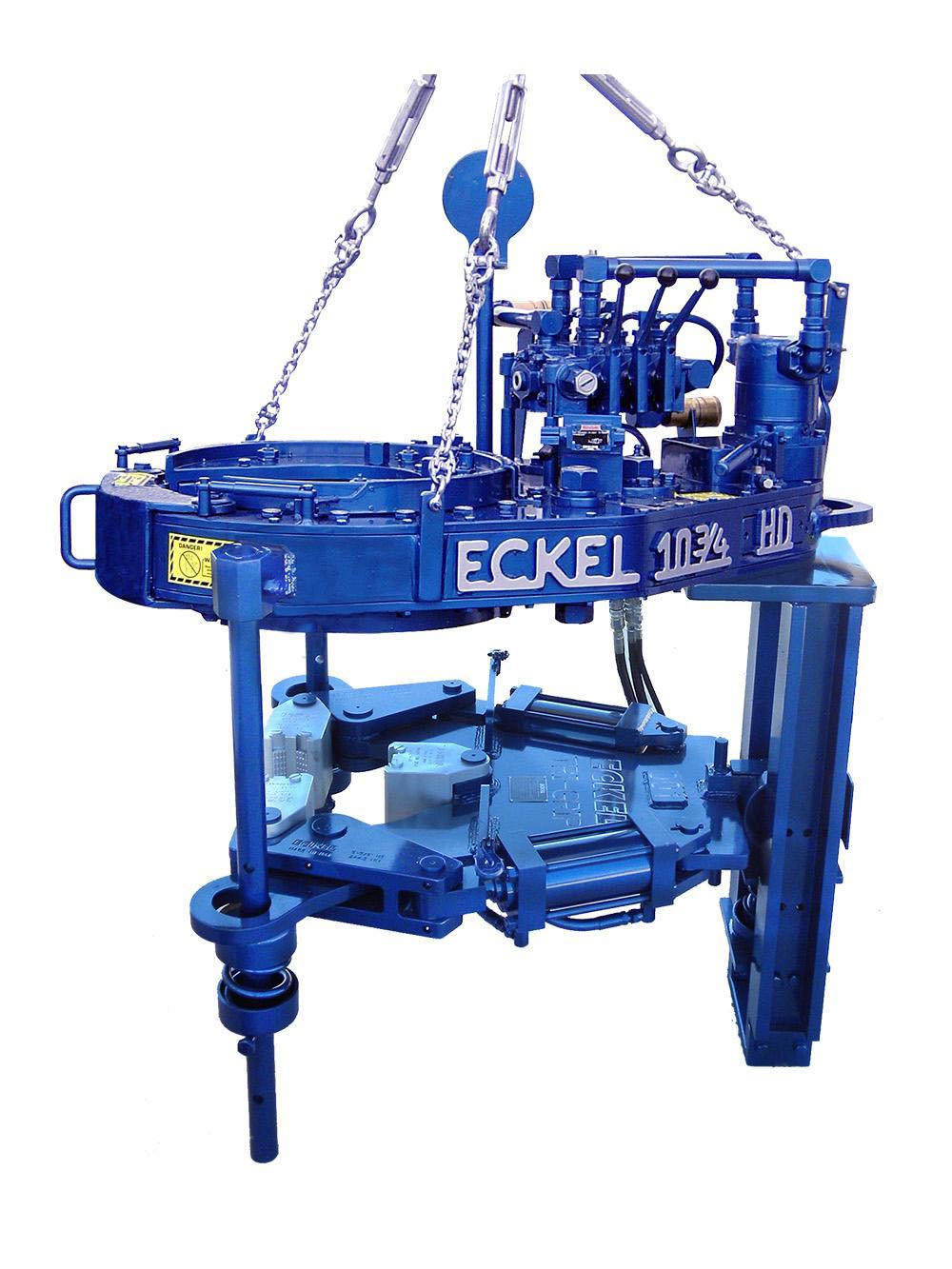

10¾ Heavy Duty Tong

When higher torque performance than 10¾ Standard is required, the Eckel 10¾ Heavy Duty provides the performance you need. Model 10¾ Heavy Duty is always in demand where rig floor space is at a minimum. For pipe sizes from 4 to 10¾ inches, it delivers a stout 25,000 ft-lb of available torque.

Tri-Grip® Backup

The Tri-Grip® Backup is the industry standard for reliable make-up and break-out of tubular connections that are optionally supplied with Eckel tongs. Utilizing two hydraulic cylinders and a three head arrangement ensures a slip-free operation. The backup is suspended at an adjustable level below the power tong using three hanger legs and allows the backup to remain stationary while the power tong moves vertically to compensate for the connection's thread travel. The Tri-Grip® uses two pivoting heads and one stationary. The Eckel Tri-Grip® Backup has exceptional gripping capabilities with Rig Dies when running drill pipe or optional Eckel Wrap-Around True-Grit® dies or Pyramid Fine Tooth dies for making up other types of tubular.

Technical Specifications
Tong Specifications
Capacity4 - 10¾ in. (101.6 - 273.1 mm)
Dimensions32½ x 59 in. (825.5 x 1498.6 mm)
Weight[1]1,500 lb (680.4 kg)
Maximum Torque @ 2,500 psi (172 bar)
High4,300 ft-lb (5830 Nm)
Low25,000 ft-lb (33895 Nm)
Maximum RPM @ 65 GPM (246 LPM)
High88 rpm
Low15 rpm
Handle Length36 in. (914.4 mm)
Backup Specifications
Backup TypeTri-Grip®
Capacity4 - 11¾ in. (101.6 - 298.5 mm)
Dimensions[2]41½ x 64.5 in. (1054.1 x 1638.3 mm)
Weight[1][2]2,825 lb (1281.4 kg)
Load Cell Type Compression or Tension
Handle Length[2]36 in. (914.4 mm)

[1]Weight Approximate, [2]Tong and Backup
